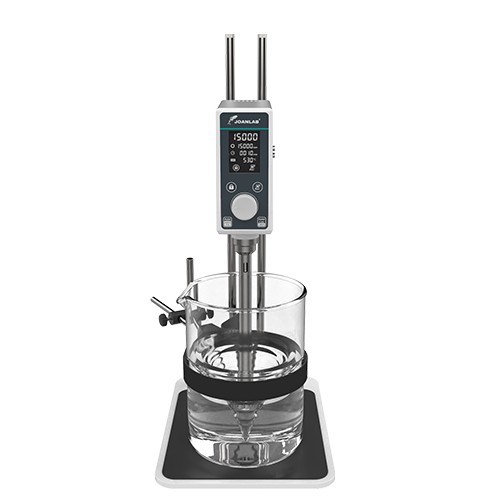

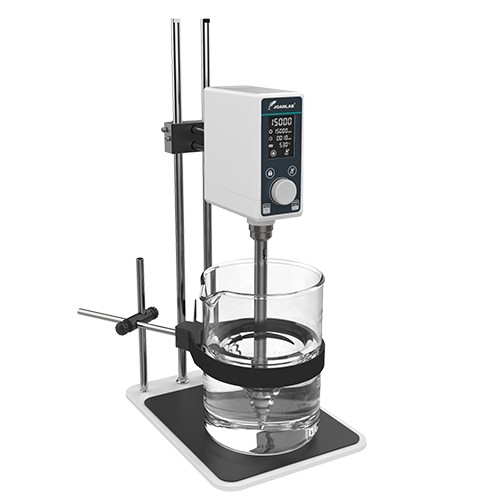

Homogenizer HZ-500Max
High Speed Homogenizer HZ-500Max is an affordable benchtop homogenization system designed for laboratories that require precise control, enhanced safety features, and efficient processing of medium to large sample volumes. Using advanced rotor stator technology, the instrument delivers effective emulsification, dispersion, particle size reduction, and sample homogenization across a wide range of laboratory applications. The digital control interface, brushless motor, timer function, and interchangeable working heads provide flexibility for research, quality control, and product development environments. Suitable for biological, chemical, food, and cosmetic applications, the HZ-500Max offers a practical solution for laboratories in South Africa seeking reliable homogenization performance without the complexity of larger processing systems.
Overview
The High Speed Homogenizer HZ-500Max is a digitally controlled laboratory homogenizer developed for scientists and laboratory technicians who require consistent sample preparation and process control.
Unlike conventional manual homogenizers, this system combines programmable operation, safety monitoring, and quick-change rotor stator assemblies in a compact benchtop design. As a result, laboratories can improve workflow efficiency while maintaining repeatable homogenization conditions.
The instrument is suitable for emulsification, dispersion, tissue disruption, liquid-liquid mixing, and liquid-solid processing across research, academic, industrial, and quality control environments.
Digital Speed and Process Control
Users can adjust operating parameters through a simple control knob, making routine operation straightforward and efficient. The HZ-500Max features an intuitive digital display that provides real-time information, including:- Actual rotational speed
- Target rotational speed
- Timer settings
- Temperature monitoring
- System status indicators
Brushless Motor Technology
Laboratories can process a wide variety of samples while maintaining controlled operating conditions. The integrated DC brushless motor provides stable operation across the full speed range. Key specifications include:- Speed range: 3,000 – 15,000 rpm
- Speed adjustment increments: 500 rpm
- Clockwise rotation
- Rated power: 250 W
- Timer range: 0–24 hours

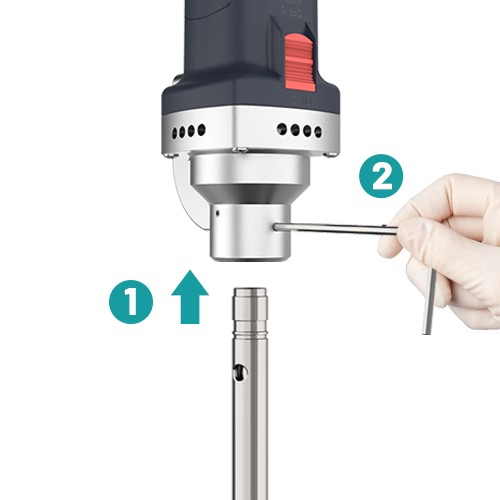

Quick-Connect Rotor Stator System
The quick-connect mechanism allows rapid installation and removal of working heads. Therefore, users can switch between applications without lengthy setup procedures. The working heads are manufactured from 316 stainless steel, providing corrosion resistance for many common laboratory applications.Multiple Working Head Options
The High Speed Homogenizer HZ-500Max supports three interchangeable rotor stator assemblies. This flexibility enables users to optimize processing performance according to sample volume and viscosity.Advanced Safety Features

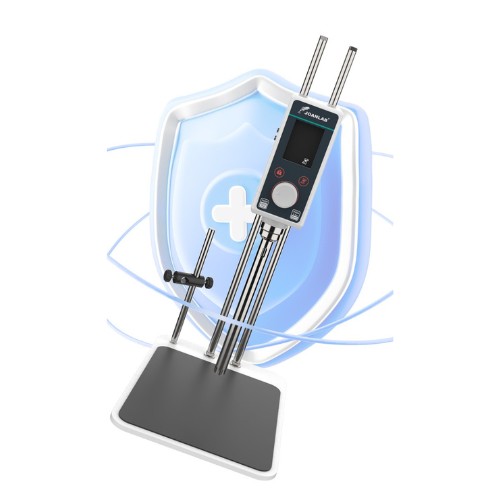

Tilt Detection Protection Laboratory safety is often a critical requirement during high-speed processing. Therefore, the HZ-500Max includes an integrated tilt detection system. As a result, laboratories can reduce the risk of accidental damage during operation. If the instrument tips beyond the permitted operating angle, the system:- Stops operation automatically
- Activates an audible alarm
- Displays a warning indication
Applications
The High Speed Homogenizer HZ-500Max is suitable for a broad range of laboratory applications, including: Life Science and Biotechnology- Tissue homogenisation
- Cell disruption
- Sample preparation
- Protein extraction
- Biological suspensions
- Dispersion of powders
- Polymer blending
- Pigment processing
- Emulsion preparation
- Quality control testing
- Sauce development
- Ingredient dispersion
- Product formulation
- Texture optimisation
- Creams
- Lotions
- Shampoos
- Gels
- Emulsified formulations
Performance and Convenience

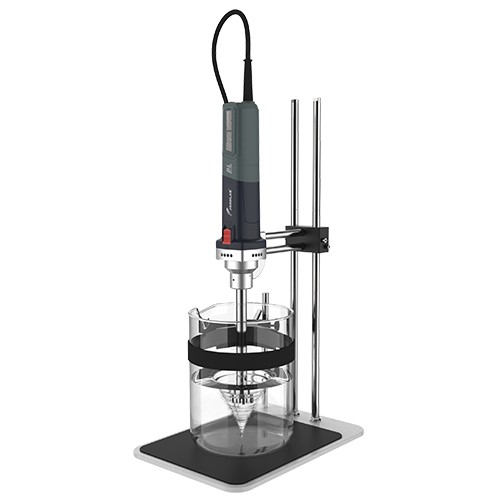

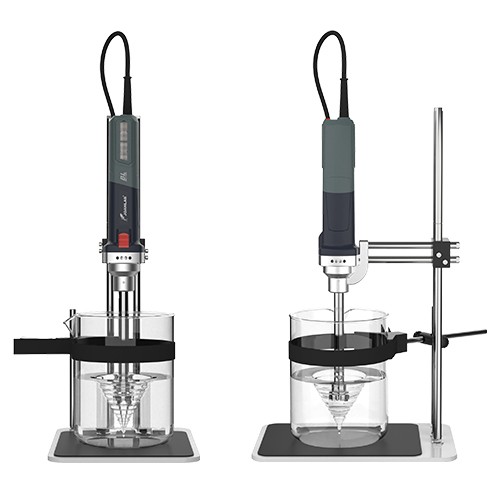

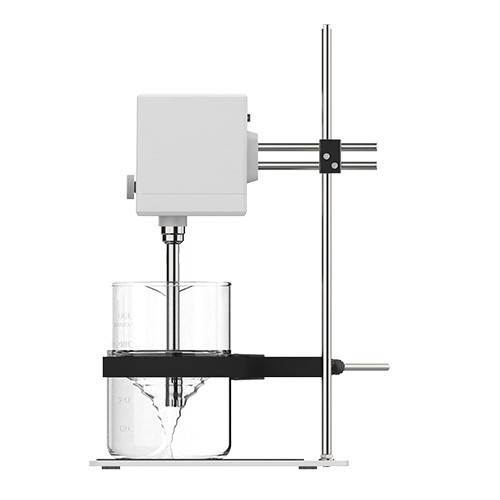

The dual-column support stand provides stable operation during processing. Furthermore, the integrated vessel holder helps secure containers during high-speed mixing. The digital interface simplifies method development because users can accurately set speed and processing time. In addition, the quick-change working head system reduces downtime between applications. For laboratories handling multiple sample types, these features help improve productivity while maintaining consistent results.

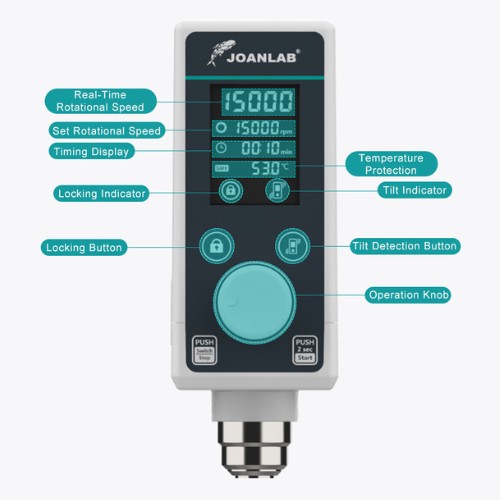

Digital Control Interface displays speed, time, and status information for precise and intuitive operation

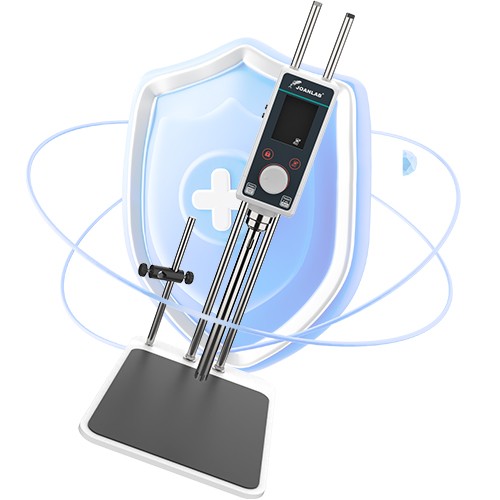

Tip-Over Detection System automatically stops operation and activates alarms if the unit is overturned

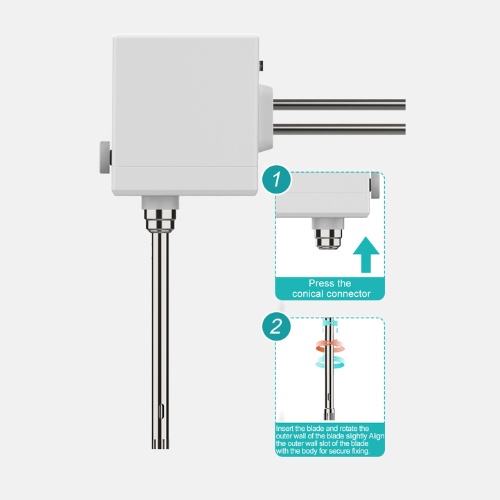

Quick-Connect Probe System enables fast attachment and replacement of homogenizing heads, reducing downtime significantly
