An Overhead Stirrer is often the preferred choice when magnetic stirring no longer provides sufficient torque or mixing efficiency. Unlike magnetic stirrers, a mechanical laboratory stirrer uses a rotating shaft and stirring paddle to generate direct mixing force within the sample. The Vertex Analytical range includes compact digital models for routine laboratory tasks and higher-torque systems for larger volumes and more viscous materials. Depending on the model selected, mixing capacities range from 5 litres to 100 litres, making these units suitable for both laboratory and pilot-scale applications. Furthermore, the range includes both standard and Pro models. Pro versions allow the stirring shaft to pass through the motor housing, enabling quick paddle height adjustment without repositioning the entire instrument. As a result, users can work more efficiently with containers of varying sizes.

Variable Speed Control

The digital models provide accurate speed monitoring through an integrated display.Each Variable Speed Overhead Stirrer offers precise speed adjustment to suit different sample types and viscosities. Depending on the model, speed ranges include:

• 100–1200 rpm
• 100–1500 rpm
• 50–1200 rpm

Brushless Motor Technology

Selected models feature a Brushless Motor Overhead Stirrer design that reduces maintenance requirements while providing stable operation during extended mixing periods. Key benefits include:

• Reduced wear compared to brushed motors
• Consistent speed regulation
• Lower maintenance requirements
• Improved reliability for continuous operation

Digital Control and Programmable Operation

The Digital Overhead Stirrer range incorporates intuitive controls with digital displays and programmable timers. Consequently, laboratories can standardise mixing procedures and improve repeatability between experiments. Features include:

• Speed adjustment
• Timer settings from 0–24 hours
• Real-time operating status display
• Adjustable speed increments on selected models

High Torque Mixing Performance

For demanding applications, the High Torque Overhead Stirrer models deliver significant stirring force for viscous samples. Therefore, users can confidently mix liquids ranging from simple buffers to thicker emulsions and formulations. Available specifications include models with 5,000 mPa·s to 70,000 mPa·s maximum viscosity.

Applications

Because of their strong mixing capability, these instruments are commonly selected as Industrial Laboratory Stirrer solutions where higher viscosities are encountered. These systems are suitable for a wide range of laboratory and industrial applications, including:

• Chemical mixing
• Reagent preparation
• Pharmaceutical development
• Biotechnology research
• Environmental testing
• Food and beverage research
• Paint and coating formulation
• Cosmetic and personal care product development
• Emulsion preparation
• Polymer and resin processing

Performance and Convenience

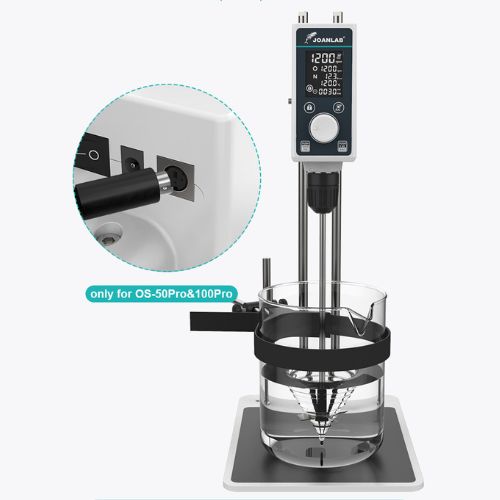

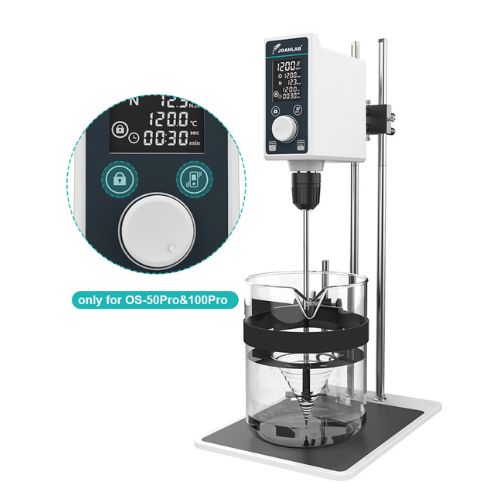

The Vertex Analytical range is designed for practical day-to-day laboratory use. Additionaly, Pro models provide through-shaft adjustment, allowing users to position the mixing paddle quickly when working with tall vessels or varying liquid levels. Features may include:

• Multiple stirring shaft and paddle options
• Compatibility with various vessel sizes
• Benchtop overhead stirrer configurations
• Adjustable shaft positioning
• Compact footprints for laboratory benches
• Digital laboratory mixer functionality
• Clamp diameters suitable for shafts from 1–10 mm

Safety and Reliability

Laboratory mixing equipment must operate safely and consistently. For this reason, selected models incorporate several protective functions.

• Lock Function: A keypad lock prevents accidental changes to operating parameters during experiments.
• Tilt Detection Protection: Certain models feature automatic tilt detection. If excessive movement or instability is detected, the instrument can stop operation to protect the sample and equipment.
• Optional Temperature Monitoring: Selected Programmable Overhead Stirrer models support an optional external temperature probe. This accessory helps monitor process temperatures during mixing and can assist users working with temperature-sensitive materials.
